V8 Opamp Kit

V8 Opamp Kit
  • Click to enlarge
Opamps (Required)

$22.00AUD inc GST for Australian Customers
(Approx $15.17USD outside Australia)
Change currency to see all prices including options in your preferred currency.


Product Information
Stock Level8

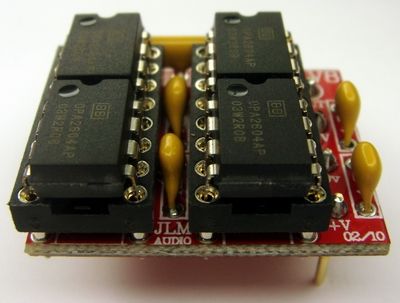

JLM V8 opamp kit uses 4 x dual standard opamps like NE5532AP, OPA2604AP, TL072, LM833, OPA2134 to make a brut powerful hard load driving opamp with low THD. All 8 opamp outputs share the load.

Pinout is standard 99v, 2520, 990, 992, 993.

4 x NE5532AP can drive 60ohm load on +/-12v to +/-18v power rails

4 x OPA2604AP can drive 60ohm load on +/-12v to +/-24v power rails

4 x TL072 can drive 250ohm load on +/-12v to +/-18v power rails

Note if using the V8 in BA BAD or BAN PCB leave out or cut off the 0v ground pin from this opamp for best noise performance
