Talkback Compressor kit

Talkback Compressor kit
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

$66.00AUD inc GST for Australian Customers
(Approx $42.37USD outside Australia)


Product Information
Stock Level4

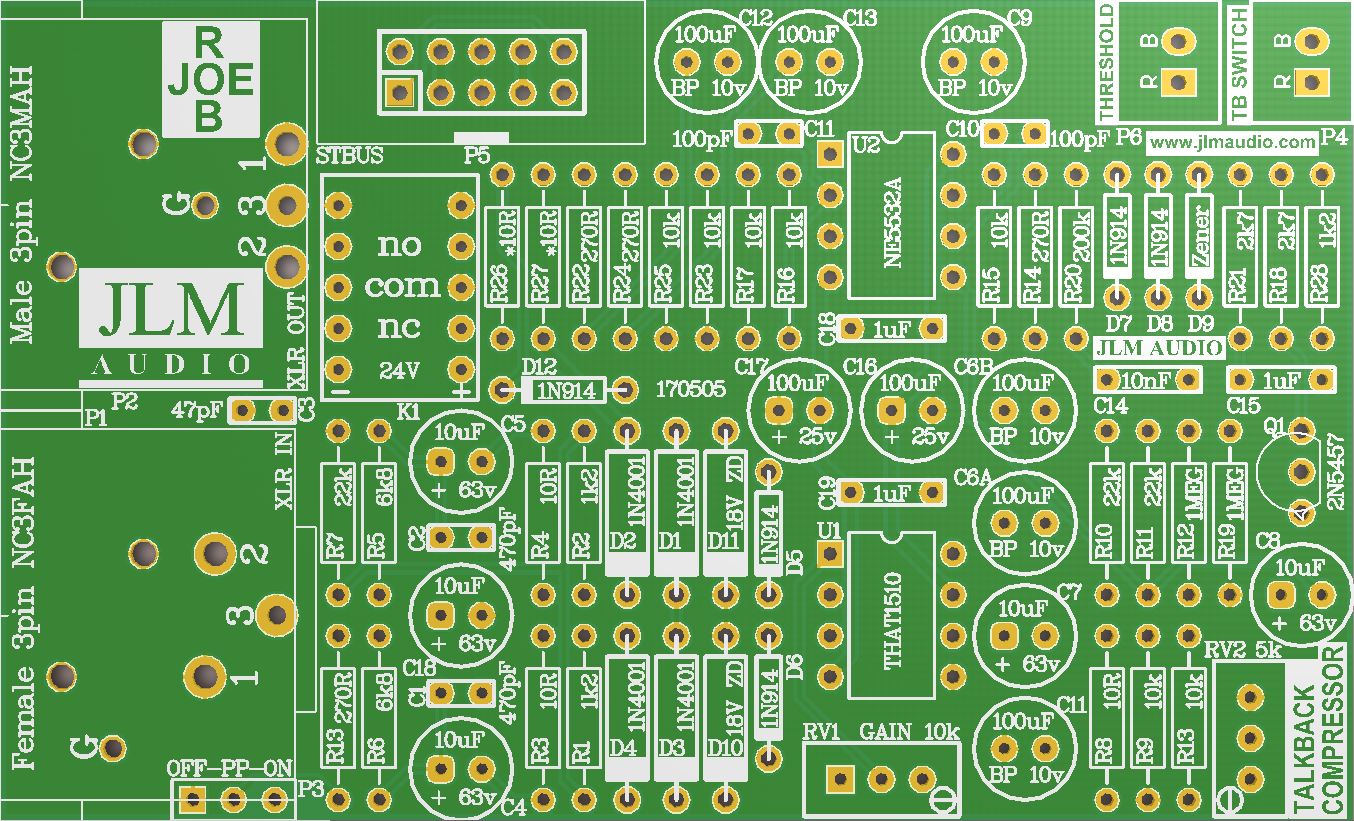

Compact and powerful talkback mic pre fet compressor. Can be used as simple balanced in THAT1510 mic pre with balanced out with comp disabled.

  • Neutrik Gold XLR in and out on PCB
  • Talkback switch terminals
  • Comp on/off threshold terminals
  • 10 pin Amp Head plug
  • THAT1510 mic pre
  • NE5532A balanced output
  • Power +/-12v to +/-18v or single 24v rail with 2 x 12v zeners or 30v with 2 x 15v zeners or 36v with 2 x 18v zeners
  • PCB 2" (50.8mm) x 3.3: (83.8mm)

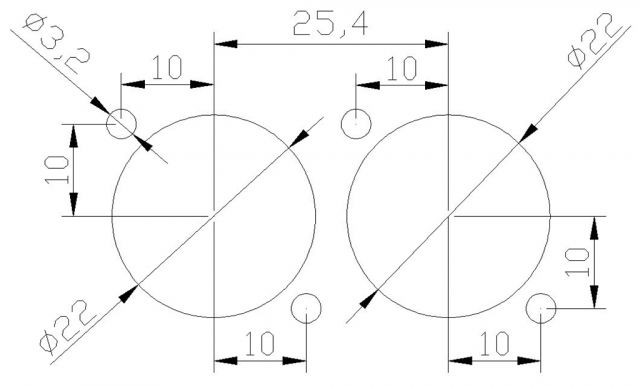

  • Mounting holes 22mm spaced 1" (25mm) apart. See below diagram



Talkback Comp Build Thread here



Click on image below for larger image

All measurements in millimeters
