VUPPM 40 LED Meter Kit

VUPPM 40 LED Meter Kit
  • Click to enlarge
SMPS PCB Module (Required)

3.0 average, based on 1 reviews

$108.90AUD inc GST for Australian Customers
(Approx $66.46USD outside Australia)
Change currency to see all prices including options in your preferred currency.

Product Information
Stock Level1

New VUPPMGR40v3 Meter kit

New Ver 3 RED PCB can run on +5v only if fitted with the tiny 5v to +/-12v SMPS module (This module on one PCB can run 2 x VUPPMGR40v3 PCBs)

VUPPMGR40v3 Youtube Video & Build Thread here

VUPPMGR40v1&2 Youtube Video & Build Thread here

VUPPMGR40v3 Parts List here

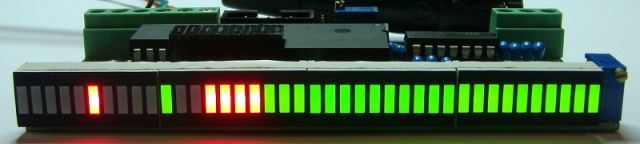

40 Led Meter displays PPM and VU ballistics with peak hold at the same time. Also can be switched to show CV gain reduction.

  • 40 x 1dB steps
  • Shows PPM in red with peak hold.
  • Shows VU in Green with peak hold.
  • Balanced/Unbalanced input with front level adjustment.
  • PCB 106mm(4.2") x 50.4mm(2")
  • PCBs can be stacked 15mm apart with hex threaded spacers.
  • Can be powered from +/-12vdc to +/-24vdc (less than 50mA total current draw all leds lit).
  • Can have on board tiny +/-12vdc to 5vdc SMPS or +5v can be supplied externally.
  • Can have on board tiny +5vdc to +/-12vdc SMPS or +/-12v can be supplied externally.

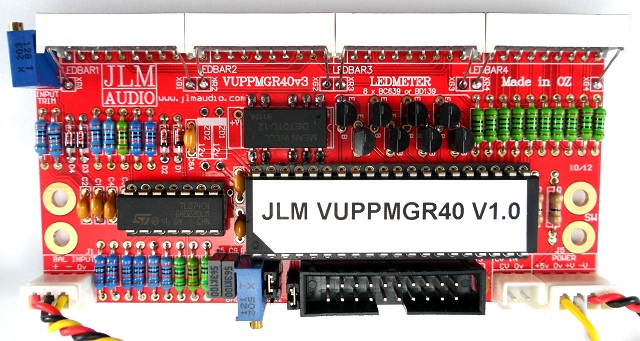

  • Some with new small white headers and prewired plugs as shown below.

Software version 1.0
SW terminal switched to 0v to switch to CV input for input on back terminals for Gain reduction.

IDC header which can daisy chained to other 40 led PPM/VU/GR PCBs

  1. Jumper for switching to CV input. (Linked to SW terminal)
  2. Jumper for Peak hold lock with reset when jumper shorted. If jumper left on then defaults to peak hold with decay drop back.
  3. Jumper for turn off VU peak hold.
  4. Jumper for direction change of meter right to left / Left to right
  5. Jumper for CV voltage change from 0v to 5v to 5v to 0v.

(All jumpers can be switched or changed on the fly)
e.g You can switch direction and to CV input to have a Gain reduction meter that travels in the reverse direction to the VUPPM meter.
