VUPPM Stereo Meter Compact Kit

VUPPM Stereo Meter Compact Kit
  • Click to enlarge
Power Supply (Required)

$383.90AUD inc GST for Australian Customers
(Approx $269.01USD outside Australia)
Change currency to see all prices including options in your preferred currency.


Product Information
Stock Level5

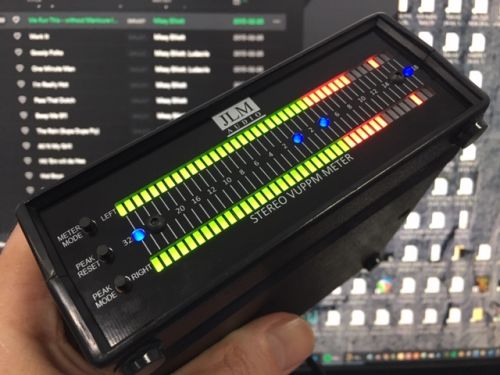

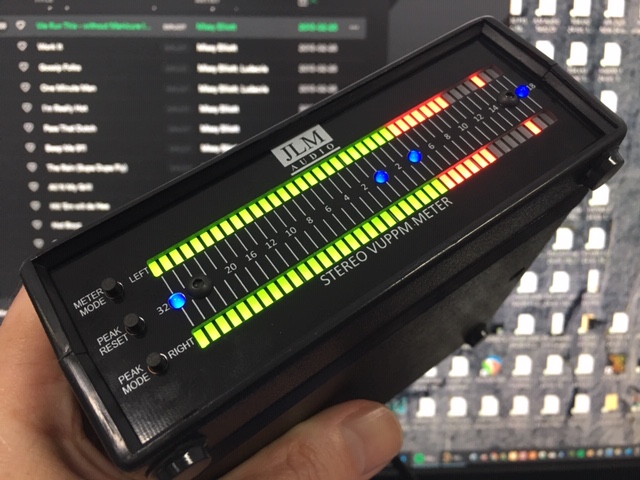

Kit version of our VUPPM Stereo meter in compact Hammond box. Boz size 134mm x 134mm x 50mm. Meter weighs 400g.

2x 40 LED Meter displays PPM and VU ballistics with peak hold at the same time.

  • 50dB range. 30 x 1dB and 10 x 2dB steps
  • Reversable Black PCB front panel with +18dBu scale on one side and 0dBFS on other.
  • Mode Switch - VUPPM, Colour Mode 1, Colour Mode 2.
  • Peak Reset Switch clears Peak Hold LED
  • Peak Mode Switch - PPM Peak hold, PPM Peak Decay, VU Peak Decay & PPM Peak Hold, VU & PPM Peak Decay.
  • VUPPM mode shows VU in Green over PPM in red.
  • Colour modes shows Classic VU Green, Yellow, Red with PPM peak led..
  • Blue LEDs mark ends of LED display & +4dBM 0VU & 0dBM PPM or AES digital input -14dBfs K14 and -18dBfs K18.
  • Test Mode press Colour Mode and Peak Mode switch together. All leds on RED then Green then Yellow, Loop.
  • 3 Brightness level set by peak reset switch while in test mode.
  • 2.1mm dc connector for 5v 1A external power adaptor
  • Power switch on rear panel
  • Neutrik gold XLR inputs

VUPPM Stereo meter compact Build thread here
