KRAFTWERK PCB

KRAFTWERK PCB
  • Click to enlarge

$31.90AUD inc GST for Australian Customers
(Approx $20.38USD outside Australia)


Product Information
Stock Level8

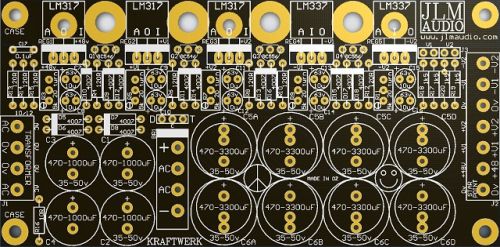

NEW  KRAFTWERK 5 rail super power supply PCB is made to power up to 2 x 11 way 500 racks or 2 x 51X racks loaded with 11 x 500 & 11 x 51X Modules. Kraftwerk has tracking and auto shutdown for each +/-V1 & +/-V2 pair of power rails. So +/- rails power up and shutdown together minimising thumps and pops in any audio equipment it is powering. Also if a fault over currents and shuts down a power rail the other power rail will shut down in sync protecting expensive DOA and DIP8 opamps from internal latch up which can kill opamps. Uses silicon tubes on regs and 4 x 5mm bolts to locate PCB and hold the regs firm to the heatsink. So no white bush and hole burr cutting silicon pad problems. Can be quick released from heatsink in seconds for any maintenance.  Fits on back or front or inside 2 rack unit high cases.

Features


  • 5 power rails. (3 positive and 2 negative @ 1.5Amp each)
  • 26400uF (13200uF per +/-rail) Super smoothing cap bank.
  • +/-V1 & +/-V2 tracking. (eg the +/-V1 & +/-V2 power rails will track each other while powering up or down within +/-0.3v stopping most thumps and pops)
  • +/-V1 & +/-V2 auto shutdown. (eg if the +16v goes into protect and shuts down it will put down the -16v automatically as well and vica versa)
  • KRAFTWERK PCB is ROHS GOLD HASL PLATED with thick copper.
  • KRAFTWERK PCB measuring a tiny 121mm (4.76") x 59.5mm (2.34")



Kraftwerk Parts List here

Kraftwerk Build Thread here




Kraftwerk can be configured for below and many other combinations.
500 series only to provide +16vdc @ 3Amp / -16vdc @ 3Amp and +48vdc @ 400mA using a 2 x 18vac 160VA to 225VA.
500/51X series to provide +16vdc @ 1.5Amp / -16vdc @ 1.5Amp and +24vdc @ 1.5Amp / -24vdc @ 1.5Amp and +48vdc @ 400mA using a 2 x 22vac 225VA to 300VA.
51X series to provide +24vdc @ 3Amp / -24vdc @ 3Amp and +48vdc @ 400mAusing a 2 x 22vac 225VA to 300VA.

Heatsink is 150mm wide x 75mm high x 38mm deep. Made to fit on back, front or inside 2 unit high rack cases.

KRAFTWERK PCB is ROHS GOLD HASL PLATED with thick copper. Measuring 121mm (4.76") x 59.5mm (2.34")
