ELEVEN 500 Series Rack and power supply
500 Modules ordered with the rack are discounted by $20 each
Features

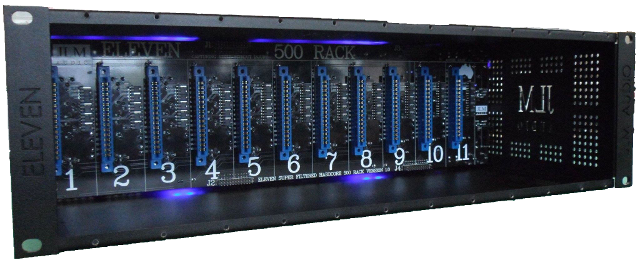

11 Slots with 200mA per slot single power supply or 400mA power per slot dual power supply
Full compatibility with API 500 Series and VPR-approved modules
Extra Half slot with Stereo TRS in and out for optional Headphone & Monitor Modules etc.
Neutrik Gold XLR in and outs
Neutrik Gold TRS in and outs

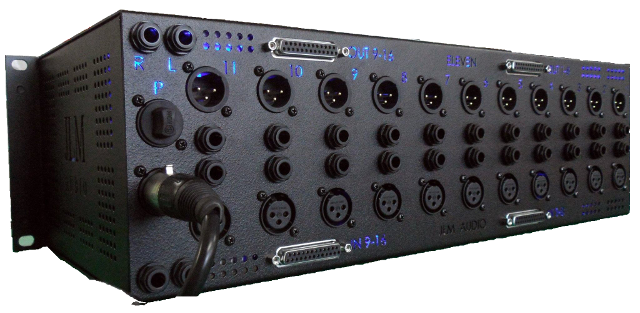

4 x DB25 in and out on the rear panel for all 11 channels + 12,13,14 for TRS CH9-11 + 15,16 for L&R TRS for half slot.
Phantom Power
Compressor linking jumpers on rear pcb.
Jumpers for parellel TRS to XLR or make TRS 2nd in and out per module.
Super tough steel chassis.
Rack comes set to all DB25, TRS, XLR inputs and outputs in parallel and comp links 1-2, 3-4, 5-6, 7-8, 9-10. Most users will not need to touch the jumpers at all.
1st DB25 1-8 in and out
- CH1 XLR in and out
- Ch2 XLR in and out
- CH3 XLR in and out
- CH4 XLR in and out
- CH5 XLR in and out
- CH6 XLR in and out
- CH7 XLR in and out
- CH8 XLR in and out
2nd DB25 9-16 in and out
- CH9 XLR in and out
- Ch10 XLR in and out
- CH11 XLR in and out
- CH9 TRS in and out
- Ch10 TRS in and out
- CH11 TRS in and out
- Left TRS for Half slot in and out
- Right TRS for Half slot in and out
With TRS link jumpers set to normal mono mode CH9,10,11 XLR and TRS will be linked together.
