990A+ opamp

990A+ opamp
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

$73.15AUD inc GST for Australian Customers
(Approx $49.19USD outside Australia)

(Quantity discounts available)


Product Information
Quantity Discounts
Stock Level25

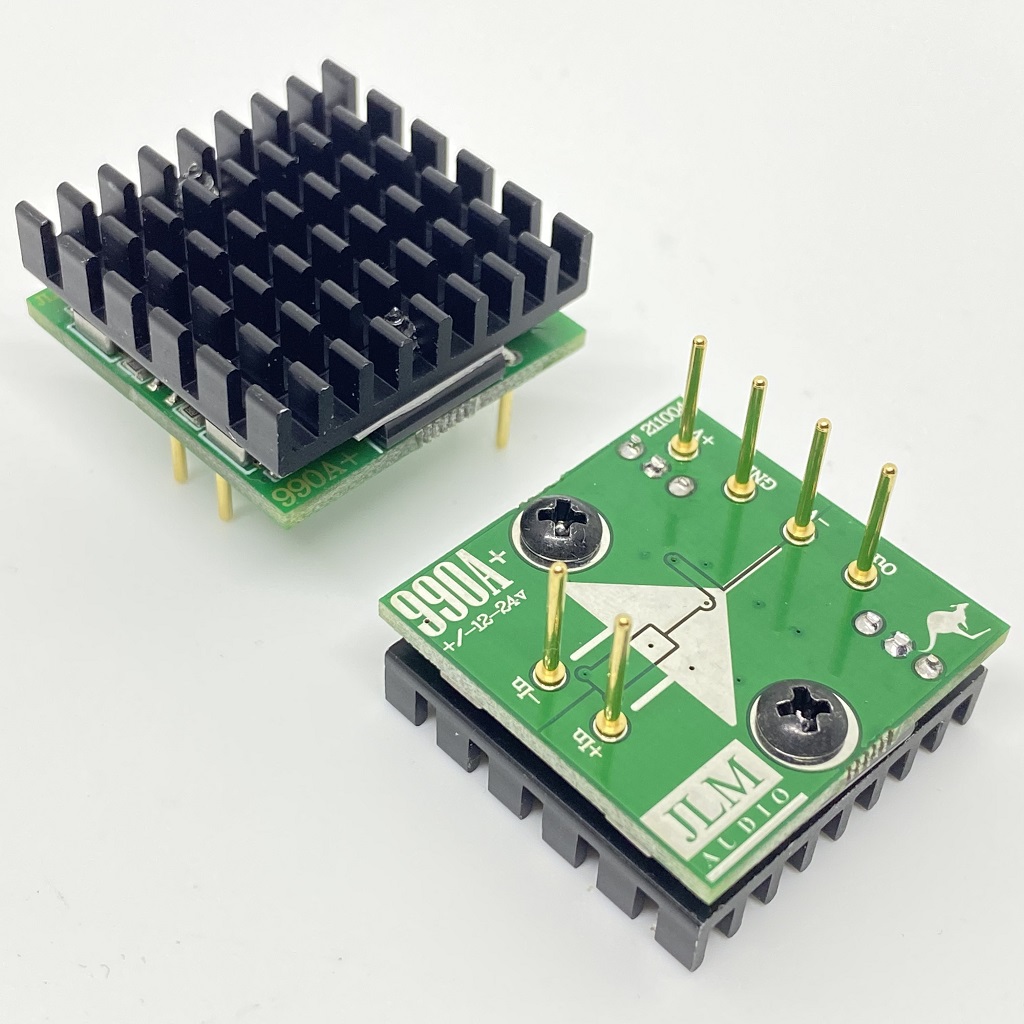

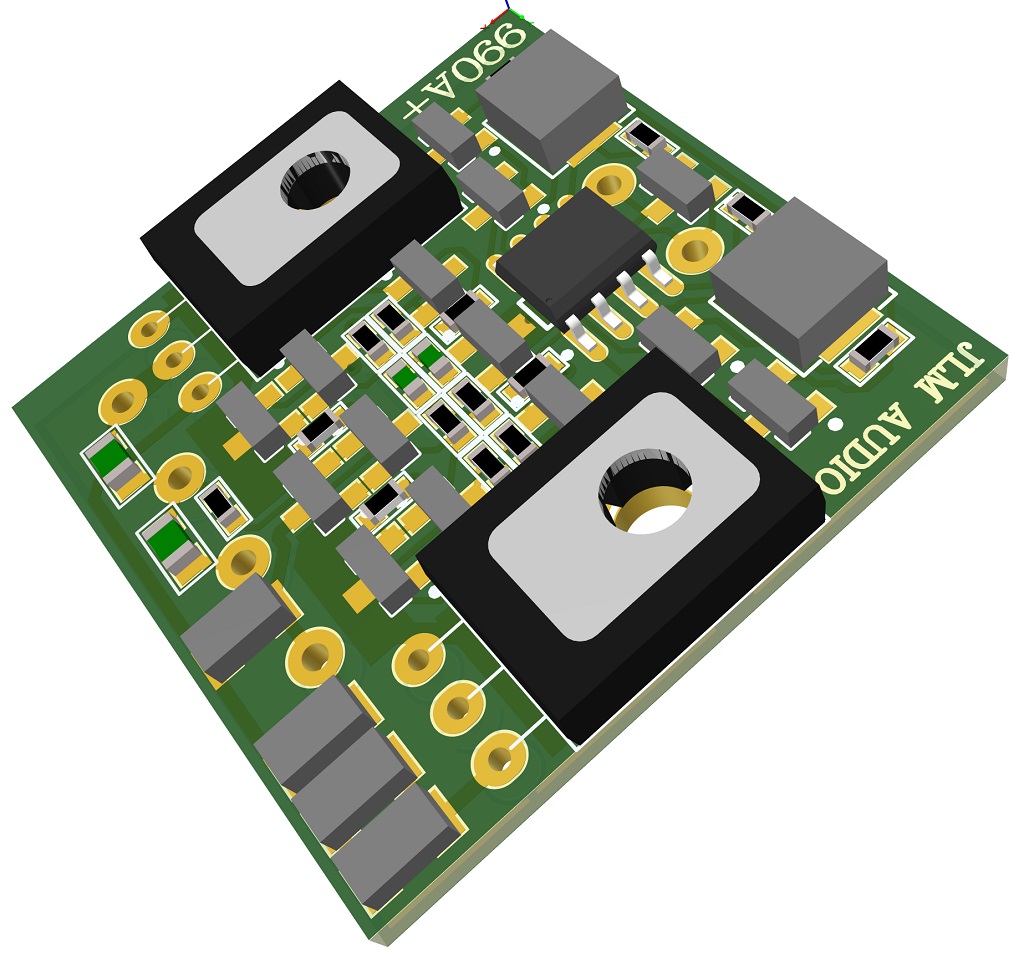

Our modern version on the Deane Jensen 990 opamp. Due to our improved dual constant currents tracking more than 10 times better than the original, the C upgrade for wide voltage range is not needed so the design is closer to the original 990 version but can run on even wider voltage range. We have added the A update to protect against +V loss drawing high current from output to -V which can damage output transformers. The same original 990A circuit in SMD and through-hole with aluminum heatsink for better cooling.

  • Wider voltage range +/-12vdc to +/-28vdc
  • Draws 25mA @ idle
  • Improved Dual Constant Currents
  • SSM2212 2 x 50 transistor matched input pair replaces LM394
  • Open repairable SMD design



Test Summary @ +/-24vdc

Frequency response (from 40 Hz to 15 kHz), dB
+0.02, -0.03
Excellent
THD, %
0.00205
Excellent
THD + Noise, dB (A)
-114.5
   Excellent
IMD + Noise, %     0.00217
Excellent
General performance

Excellent



Frequency response





Left
Right
From 20 Hz to 20 kHz, dB
-0.04, +0.07
-0.04, +0.07
From 40 Hz to 15 kHz, dB
-0.03, +0.02
-0.03, +0.02



THD + Noise (at -3 dB FS)

Spectrum graph



Left
Right
THD, %
0.00205
0.00205
THD + Noise, %
0.00209
0.00209
THD + Noise (A-weighted), %
0.00205
0.00205



Intermodulation distortion

Spectrum graph



Left
Right
IMD + Noise, %
0.00217
0.00217
IMD + Noise (A-weighted), %
0.00211
0.00211
