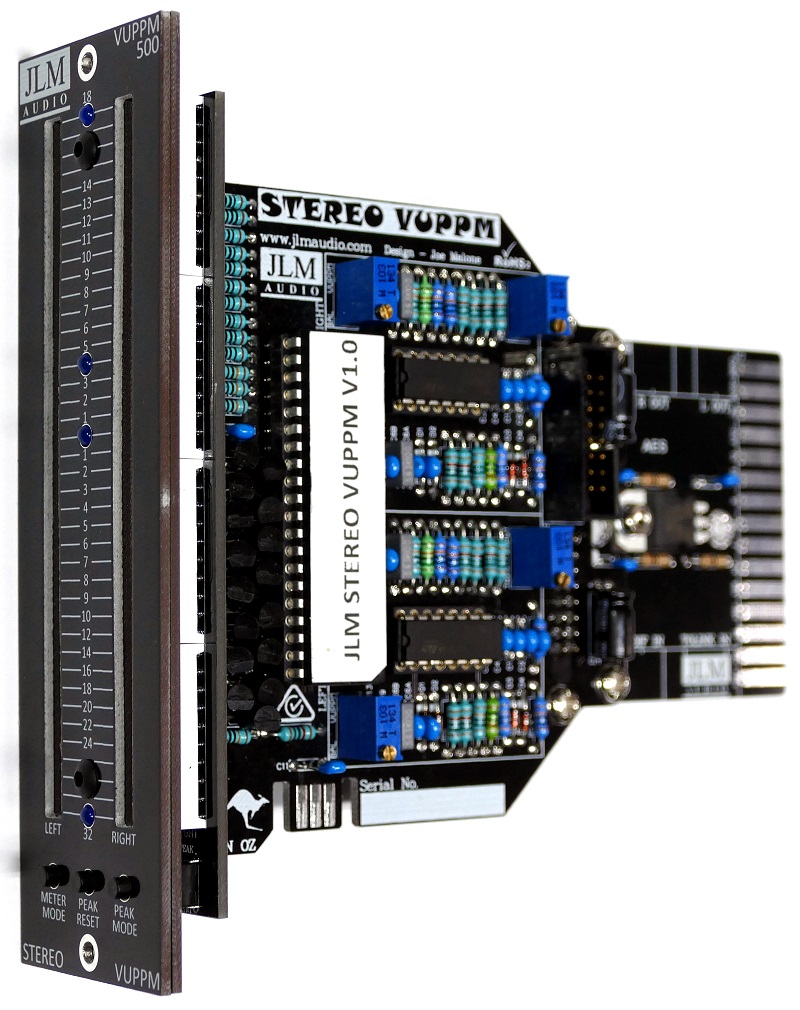

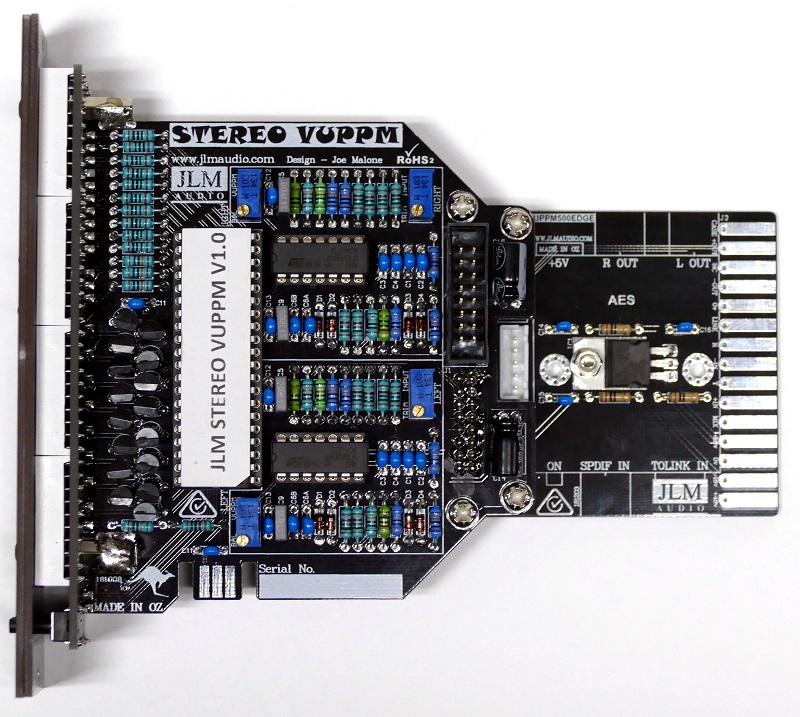

New VUPPM500 Stereo Meter Kit
2x 40 LED Meter displays PPM and VU ballistics with peak hold at the same time.
- 50dB range. 30 x 1dB and 10 x 2dB steps
- Reversable Black PCB front panel with +18dBu scale on one side and 0dBFS on other.
- Mode Switch - VUPPM, Colour Mode 1, Colour Mode 2.
- Peak Reset Switch clears Peak Hold LED
- Peak Mode Switch - PPM Peak hold, PPM Peak Decay, VU Peak Decay & PPM Peak Hold, VU & PPM Peak Decay.
- VUPPM mode shows VU in Green over PPM in red.
- Colour modes shows Classic VU Green, Yellow, Red with PPM peak led.
- Colour modes can be customised to any combo of colours before shipping.
- Meters use 500 rack pin 6 link wire to communicate and sync all meters.
- Inputs Balanced Analog (with AES / SPDIF option coming soon)
- Left in on input and right in on output with short female to female lead or TRS in and out on our Eleven rack.
- If AES card fitted input XLR is AES digital stereo input. (with AES / SPDIF option coming soon)
- Blue LEDs mark ends of LED display and +4dBM 0VU and 0dBM PPM or AES digital input -14dfs K14 and -18dfs K18.
- The 500 end pcb unbolts and is reversable for horizontal racks.
- Test Mode press Colour Mode and Peak Mode switch together. All leds on RED then Green then Yellow, Loop.
- 3 Brightness level set by peak reset switch while in test mode.
Build Thread here
