JLM Audio Power Plant kit. Full 115vac/230vac to +24vdc @ 600mA and +48vdc @ 100mA power supply for running 4 x Neve, Telefunken and RCA BA modules.
Order with 2 x 12vac transformer for +24vdc to +28vdc for Neve, Telefunken etc
Order with 2 x 15vac transformer for +28vdc to +36vdc for RCA BA** etc.
Super compact size for its power. 4.75" (120.65mm) x 2.5" (63.5mm) x 1.56” (39.6mm) high .
Switchable 115vac/230vac. VS sync allows syncing multiple Power plants with one 115vac/230vac voltage selection switch.
Super smoothing capacitor bank and trim pot set able voltage rails for precision.
Easy heatsink or case mount with only one screw to tension regs down. Fits on bottom of 1 unit high case (if you have 39.6mm internal height) or side of 2 unit high case.
Regulator metal tabs face away from the PCB so they will press against metal case inside the insulating silicon tubes.

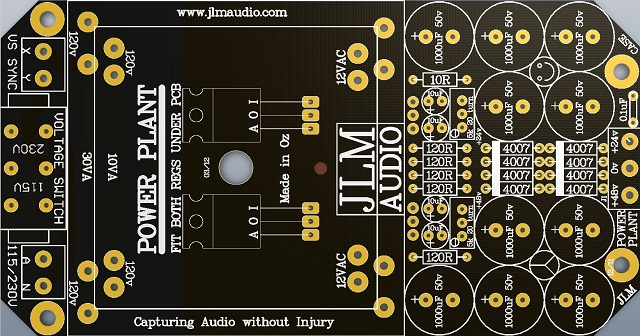

Power Plant PCB 4.75" (120.65mm) x 2.5" (63.5mm)
Order with 2 x 12vac transformer for +24vdc to +28vdc for Neve, Telefunken etc
Order with 2 x 15vac transformer for +28vdc to +36vdc for RCA BA** etc.
Power Plant Schematic here
Power Plant Parts List here
