Palpigrade 8 Channel Bal in to unbal out PCB

Palpigrade 8 Channel Bal in to unbal out PCB
  • Click to enlarge

$24.20AUD inc GST for Australian Customers
(Approx $16.62USD outside Australia)


Product Information
Stock Level4

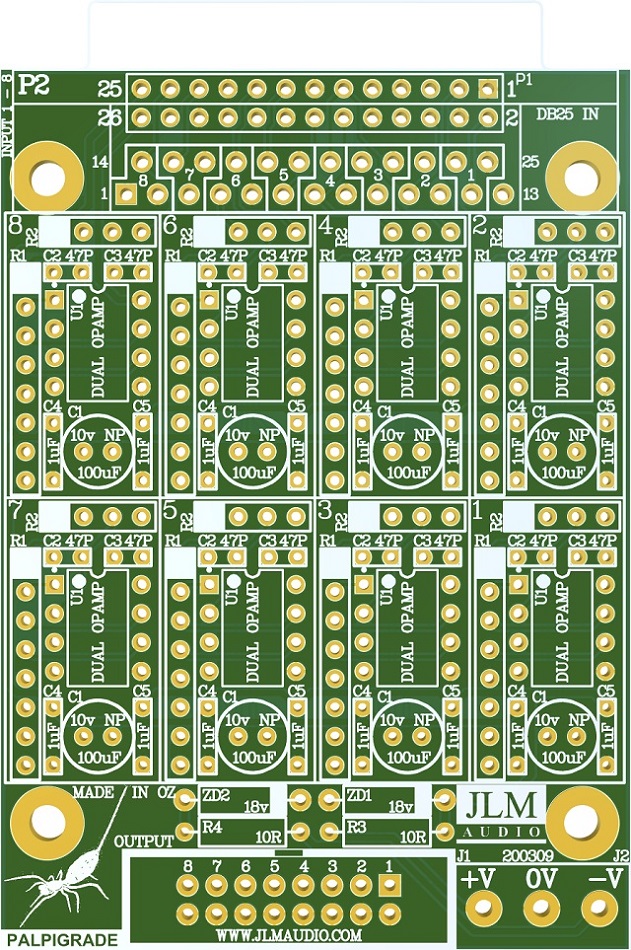

Palpigrade 8 Channel balanced in to unbalanced output audio driver PCB

Inputs on DB25 tascam or 26pin IDC header format to ribbon DB25 and output on 16pin IDC header or XLR/TRS if used with our TASCAM / IDC to XLR / TRS IN & OUT PCB at this link .

Perfect compact way to add Balanced inputs to console and projects.

  • 8 identical super balanced to unbalanced channels.
  • Frequency response 2Hz to 200Khz.
  • CMRR (dB) >70dB over whole audio range.
  • 20k input impedance.
  • Output can drive 600ohm unbalanced load.
  • Standard -6dB balanced to unbalanced level drop. Can have 2 resistors changed to make 0dB unity or -12dB etc.
  • Power with +/-12vdc to +/-18vdc or fits zeners and run on 24vdc to 36vdc floating power supply
  • PCB 2.12" (55.25mm) x 2.8" (77.35mm)

Tardigrade Build Thread here
