MICRO DUAL SWITCH POT PCB

MICRO DUAL SWITCH POT PCB
  • Click to enlarge

$5.50AUD inc GST for Australian Customers
(Approx $3.60USD outside Australia)


Product Information
Stock Level79

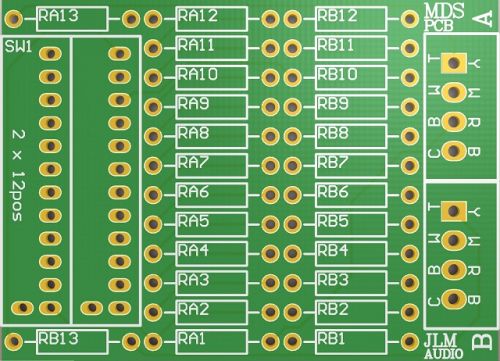

Small PCB for our Shorting and Non Shorting  2 x 12 position rotary switches. Can be used for dual gain switch or dual frequency switch in lots of audio designs.

PCB holds resistors and 4 pin headers so can convert normal and centre tapped single or dual pots to 12 position switched resistor bank.

MDS PCB 1.69" (42.93mm) x 1.23" (31.24mm)

MDS Schematic here
