Hybrid Opamp Kit

Hybrid Opamp Kit
  • Click to enlarge
Opamp (Required)

$31.90AUD inc GST for Australian Customers
(Approx $20.48USD outside Australia)
Change currency to see all prices including options in your preferred currency.

(Quantity discounts available)


Product Information
Quantity Discounts
Stock Level8

We are selling the hybrid kit without opamps at the moment due to OPA2604AP being unavailable while TI try to fix the overheating problem since they moved the opamp onto a new smaller silicon fab. You can run any dual fet input opamp on there up to the max voltage of the opamp used. Opamps like TL072, OPA2134, OP275 etc. If you are not using the servo feature then any bipolar input opamp like NE5532A etc can be used as well.

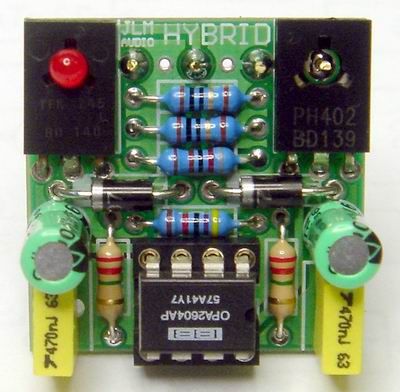

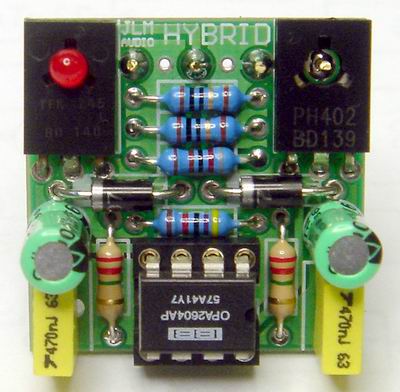

The JLM Hybrid is a fet input IC opamp with high current output drive transistors. It can have the output transistors set to run in Class A/B or Class A Mode. It also has on board DC Servo that can be enabled by soldering two solder pads together under the PCB. It is pin compatible with the JLM99v , 990, 992 , 993 , MM99, 2520. Sound wise in class A/B the opamp is fast and transients snap at you. In class A the top end softens down and sounds silky a bit like the 99v but with super tight low end.

Can be used in precision Mic pres, EQ gyrators, virtual earth summing stages, headphone amps, balanced in receivers and output drivers.

JLM Hybrid opamp circuit PDF

Specifications

  • 1.1" x 1.1" PCB
  • THD = 0.008%
  • Min Load = 50ohm
  • Maximum power rails = +/-24vdc
  • Idle Current in class A/B = 10to 12mA
  • Idle Current in class A = 25mA to 30mA

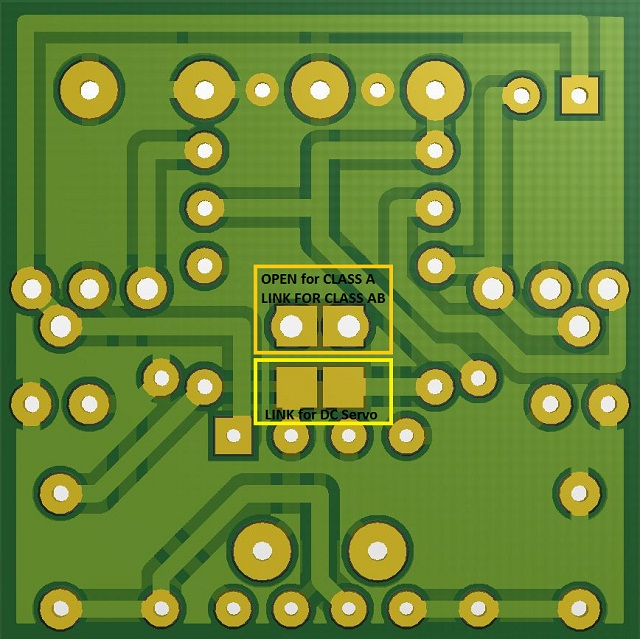

Solder Links on back of Hybrid PCB to Set Class A or AB and DC Servo.

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
1$31.90AUD
8+$28.00AUD
16+$26.50AUD
24+$25.00AUD
