AMP HEAD phone Kit

AMP HEAD phone Kit
  • Click to enlarge
Opamps (Required)

$42.90AUD inc GST for Australian Customers
(Approx $27.41USD outside Australia)
Change currency to see all prices including options in your preferred currency.


Product Information
Stock Level9

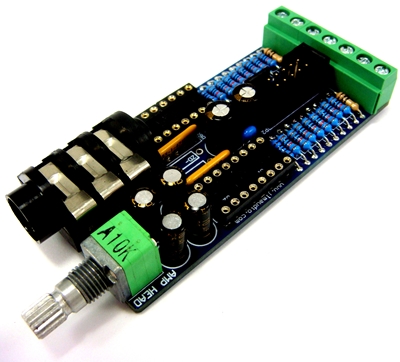

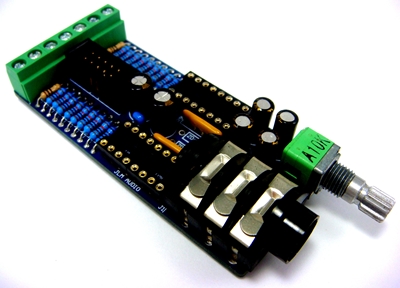

AMP HEAD kit

Small size indestructable but extremely powerful and super low 0.001% THD stereo headphone amp kit with balanced inputs, volume control and buss connector to slave several AMP HEADs together. Also easy to add mono, mute and mix options.

Can drive dead short on headphone jack indefinitely.

Wattage into various headphone impedances with power rails @ +/-18vdc. Per channel wattage shown. Double mW for stereo wattage.

300R :- 380mW with the normal 470R summing resistors(or 500mW with 47R summing resistors if you are only going to run high impedance headphones)

150R :- 560mW with the normal 470R summing resistors

75R :- 685mW with the normal 470R summing resistors

35R :- 655mW with the normal 470R summing resistors

16R :- 475mW with the normal 470R summing resistors

8R :- 300mW with the normal 470R summing resistors

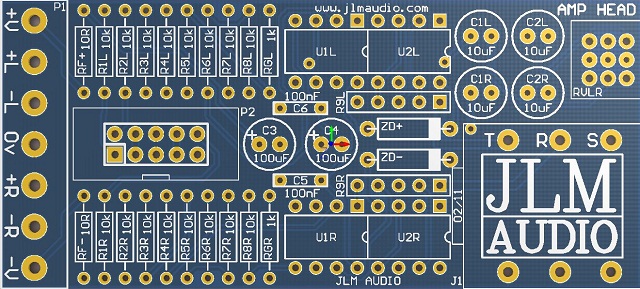

PCB Size 3.1" (87.75mm) x 1.4" (35.55mm)

AMP HEAD Parts List here

AMP HEAD Build Thread here
