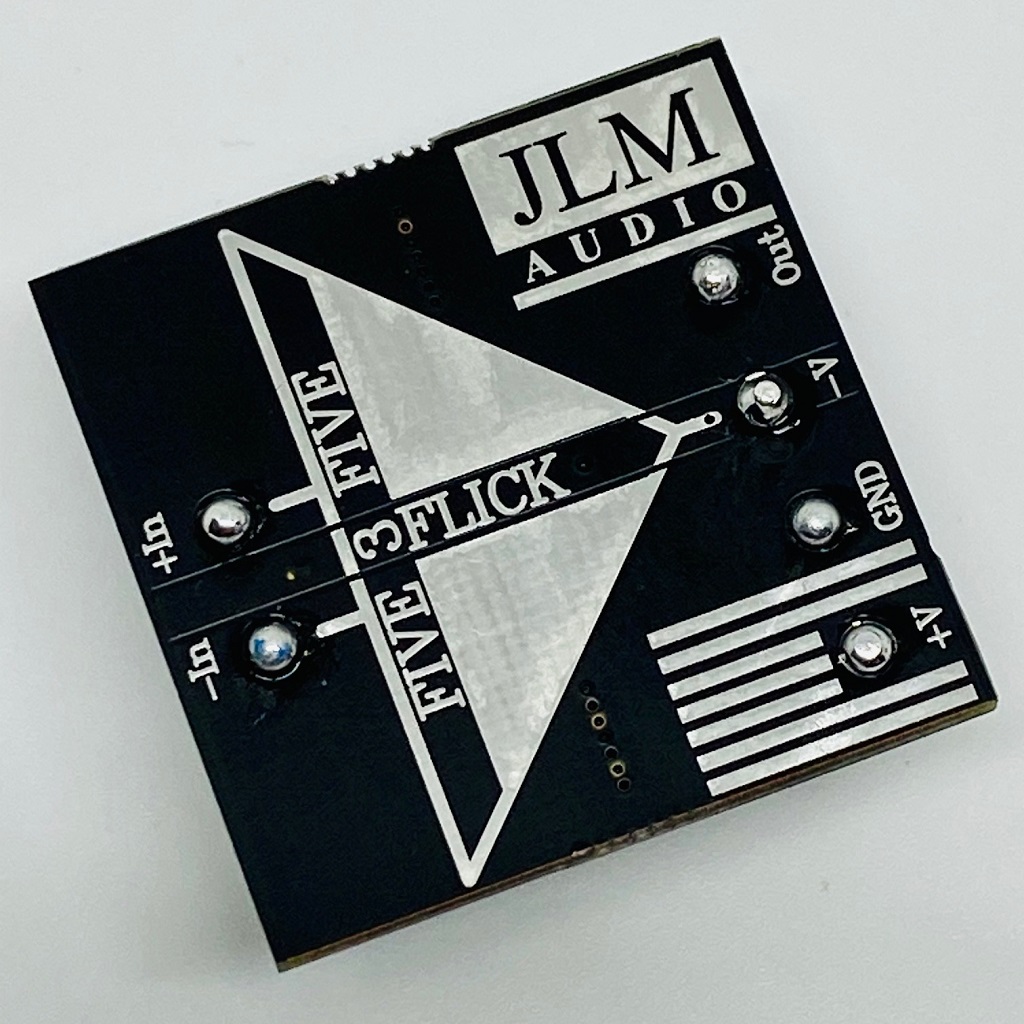

FLICK535 SMD Opamp

FLICK535 SMD Opamp
  • Click to enlarge

$53.90AUD inc GST for Australian Customers
(Approx $36.93USD outside Australia)

(Quantity discounts available)


Product Information
Quantity Discounts
Stock Level27

Our modern take on the FLICKinger opamp with standard discrete 990 2520 pinout but now in SMD

  • Power +/-15vdc to +/-28vdc (Below +/-24vdc THD increases slowly to 0.06% @ +/15vdc)
  • Draws 10mA to 20mA @ idle



Test Summary @ +/-24vdc

Frequency response (from 40 Hz to 15 kHz), dB
+0.04, -0.15
Very good
THD, %
0.00258
Excellent
THD + Noise, dB (A)
-87.9
Good
IMD + Noise, %
0.00467
Excellent
IMD at 10 kHz, %
0.021
Good
General performance

Very good

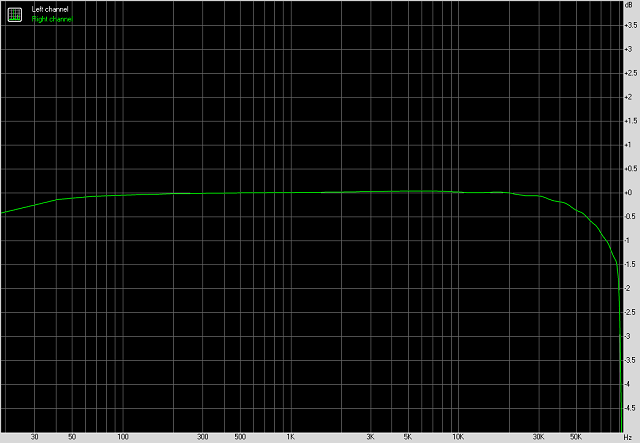

Frequency response

Spectrum graph



Left
Right
From 20 Hz to 20 kHz, dB
-0.42, +0.04
-0.42, +0.04
From 40 Hz to 15 kHz, dB
-0.15, +0.04
-0.15, +0.04

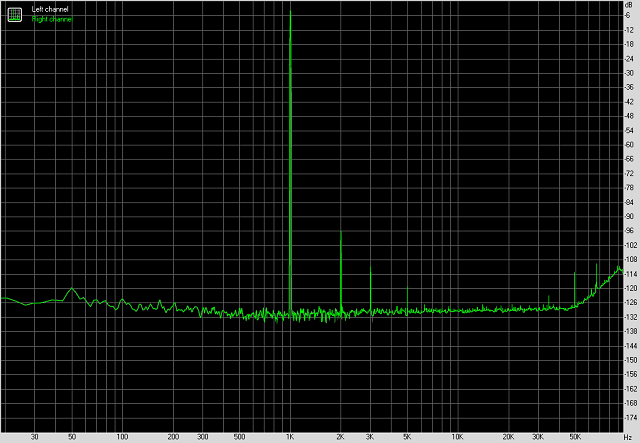

THD + Noise (at -3 dB FS)

Spectrum graph



Left
Right
THD, %
0.00258
0.00258
THD + Noise, %
0.00368
0.00368
THD + Noise (A-weighted), %
0.00405
0.00405

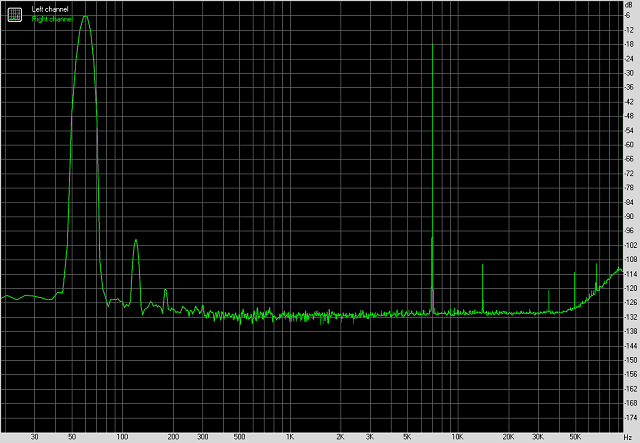

Intermodulation distortion

Spectrum graph



Left
Right
IMD + Noise, %
0.00467
0.00467
IMD + Noise (A-weighted), %
0.00404
0.00404

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
1$53.90AUD
2+$52.80AUD
4+$51.70AUD
8+$49.50AUD
