dINgO PCB

dINgO PCB
  • Click to enlarge

$22.00AUD inc GST for Australian Customers
(Approx $14.06USD outside Australia)


Product Information
Stock Level44

The dINgO v3 PCB allows for a easy neat way to have a high performance balanced IN to unbalanced output  and also a unbalanced input amp with gain to balanced Output  so can convert lots of unbalanced gear to balanced in and out. As well as providing the whole audio path for MAC comp & other opto compressors, Passive & Active EQ's, Pro volume control, etc.

PCB size is 2.9" (73.5mm) x 2.5" (63.5mm). XLR's mount on 2" (52.8mm) centre spacing and each require a 22mm hole

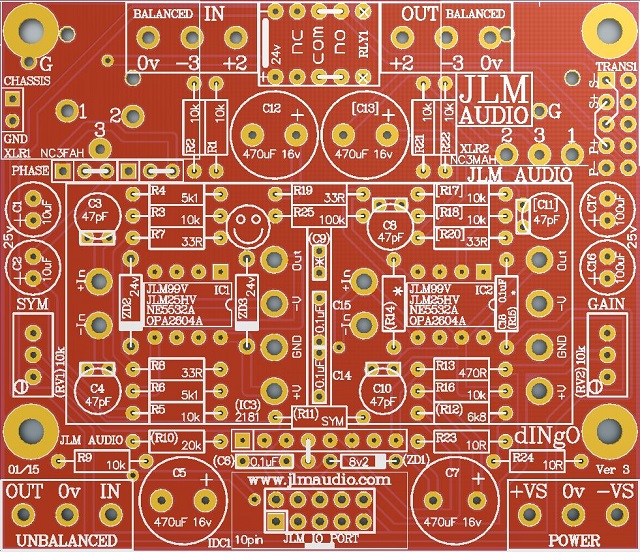

Ver 3 PCB has

  • 2 x zener diodes added to PCB for simple power rail regulation.
  • 10pin IDC header for ribbon cable connection to JLM111DC type transformers
  • Chassis /  0v link jumper
  • Overlay has been changed to line up with LA500 values eg 20k are now 10k etc.
  • Overlay components in [ ] not needed when using a transformer output. Only used with NE5532AP and OPA2604AP to run electronic balanced output.
  •  Overlay components in () not needed except for VCA comp
