RIBBON CABLETESTER PCB

RIBBON CABLETESTER PCB
  • Click to enlarge
  • Click to enlarge

$16.50AUD inc GST for Australian Customers
(Approx $11.38USD outside Australia)


Product Information
Stock Level18

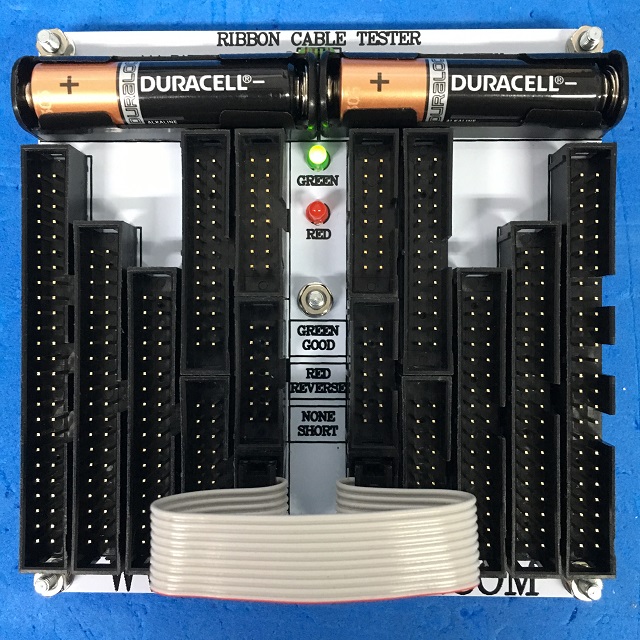

CABLETESTER PCB makes ribbon cable testing quick and easy.

  • Test for shorts and reversed plugs in seconds
  • Powered by 2 x AAA batteries

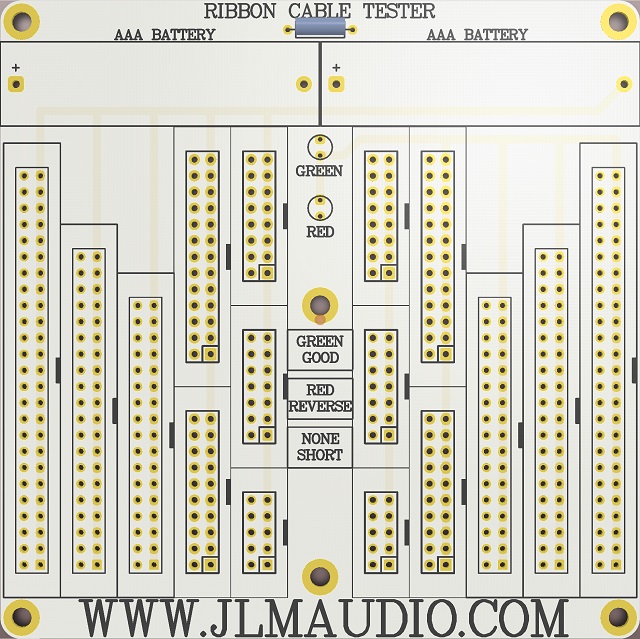

PCB size is 4" (100mm) x 4" (100mm).

Build Thread here

Parts List

  • 1 x Cabletester PCB
  • 1 x RED LED high brightness
  • 1 x Green LED high brightness
  • 1 x 1k resistor
  • 6 x M3 standoffs
  • 6 x M3 lock washers
  • 6 x M3 bolts
  • 2 x AAA battery holder
  • 2 x 50 pin IDC header
  • 2 x 40 pin IDC header
  • 2 x 34 pin IDC header
  • 2 x 26 pin IDC header
  • 2 x 20 pin IDC header
  • 2 x 16 pin IDC header
  • 2 x 14 pin IDC header
  • 2 x 10 pin IDC header
