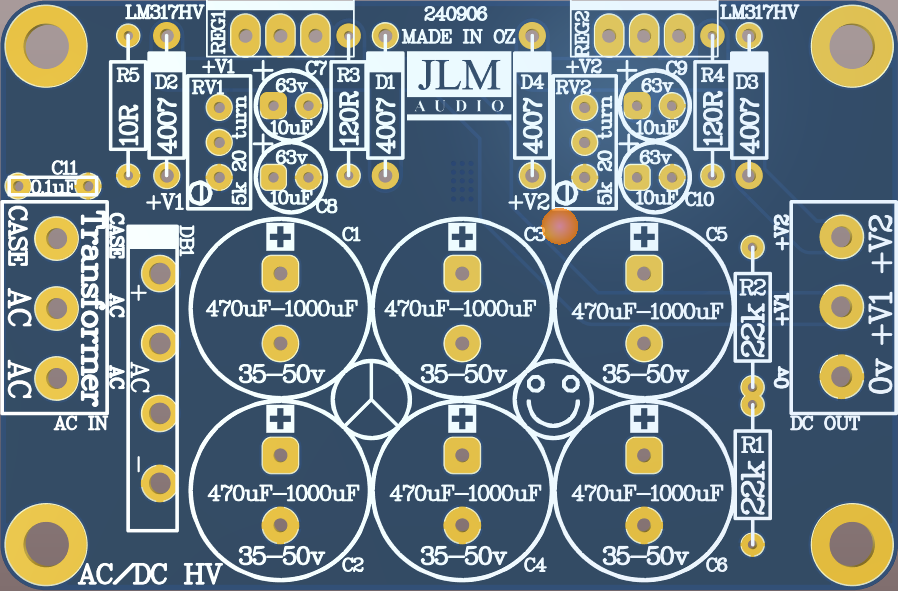

AC/DC HV PCB

AC/DC HV PCB
  • Click to enlarge

$19.80AUD inc GST for Australian Customers
(Approx $12.12USD outside Australia)

(Quantity discounts available)

Product Information
Quantity Discounts
Stock Level6

ACDC HV PCB is ideal for generating 2 regulated DC voltage rails from 24v to 60vdc @ 1.5A .

  • Ideal for PM1000 channels needing 44vdc and 48vdc from a single 40vac to 50vac transformer winding.
  • All 4 mounting bolts can be used to connect to chassis ground as well as a case screw terminal.

AC/DC KIT Build Thread here

AC/DC transformer and heatsink calculator here



You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
1$19.80AUD
10+$18.70AUD
25+$17.60AUD
50+$16.50AUD
100+$15.40AUD
