500 / 51X to DBX900 Series Adaptor

500 / 51X to DBX900 Series Adaptor
  • Click to enlarge
  • Click to enlarge
48v SMPS parts (Required)
Built and Tested (Required)

$43.45AUD inc GST for Australian Customers
(Approx $29.08USD outside Australia)
Change currency to see all prices including options in your preferred currency.


Product Information
Stock Level6

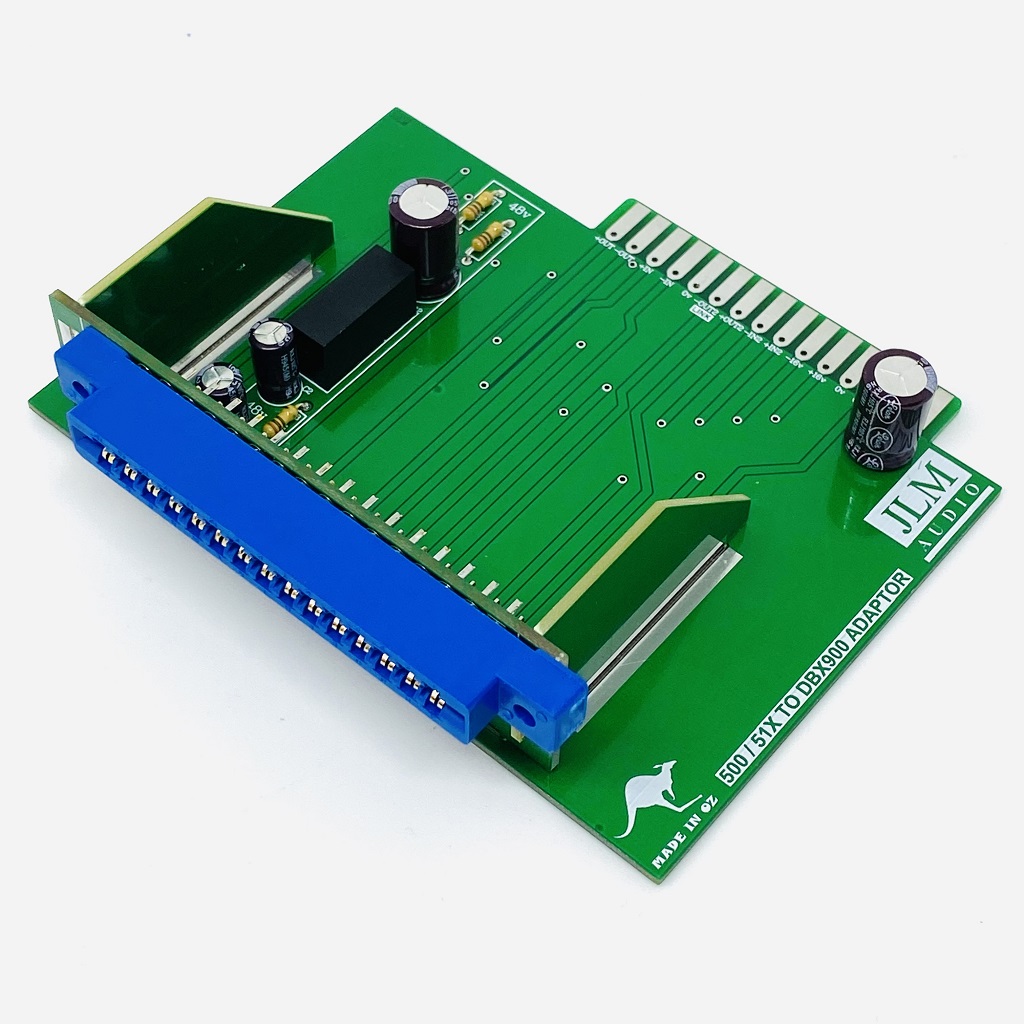

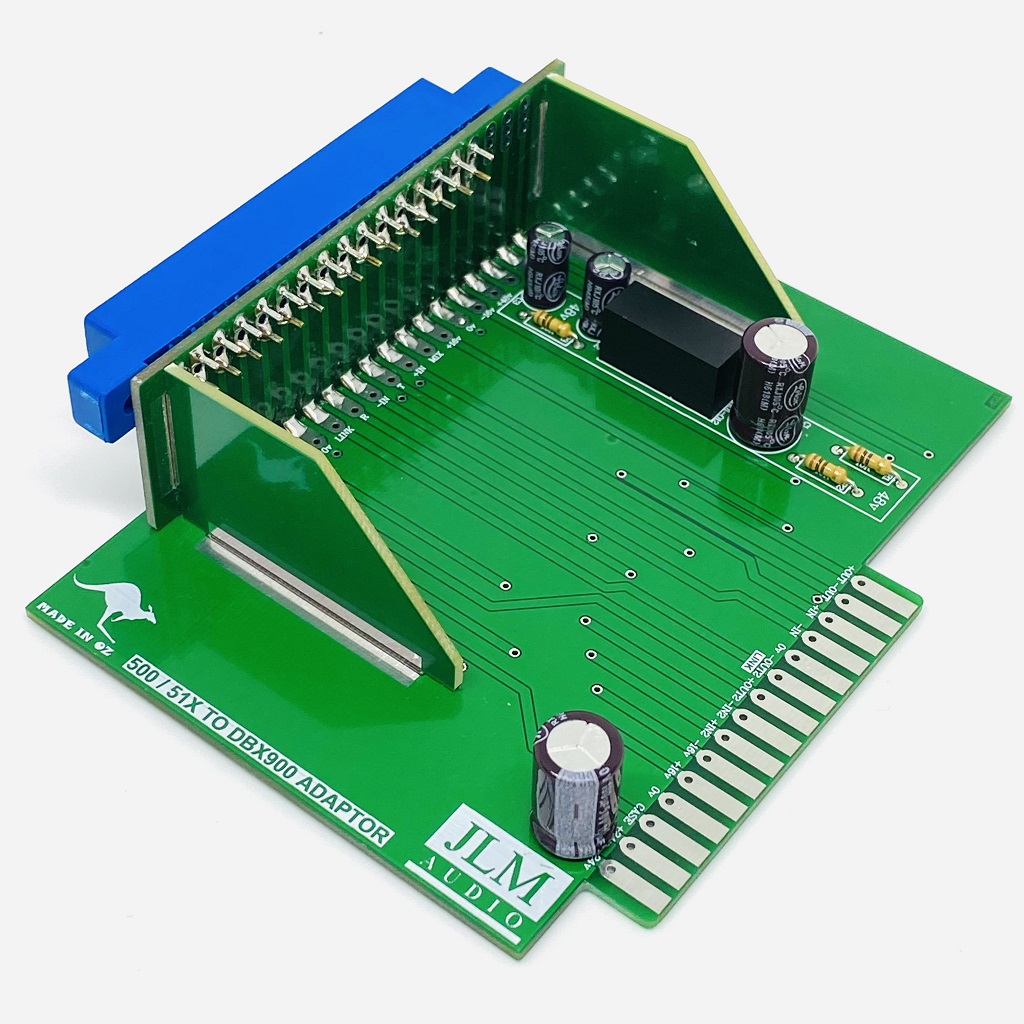

500 / 51X to DBX 900 series adaptor Kit. Allows 500 or 51X series modules to plug into DBX900 series racks

Please note

  • The 2 mounting holes on 900 series racks are slightly different spacing to 500 / 51X series so holes in 500 module may need to be made slightly larger.
  • The gap between the top and bottom mounting surface is 116mm so some 500 module brackets may touch requiring some trimming to 500 module or 900 rack.

500 / 51X to DBX 900 series adaptor Kit parts

  • 1 x 900 series edge PCB
  • 1 x Front 500 series PCB
  • 2 x Support PCBs
  • 1 x 15 pin edge connector

Optional 24v to 48v for inverter for phantom power for 500 / 51X series mic pres

The 48v inverter on one adaptor can be wired to supply 48v power for other adaptors in the same 900 series rack.

  • 24v to 48vdc SMPS module
  • 2 x 100uF 50v
  • 2 x 10uF 63v
  • 3 x 10R
