JLM111DC Compact Output Transformer

JLM111DC Compact Output Transformer
  • Click to enlarge

$76.45AUD inc GST for Australian Customers
(Approx $52.70USD outside Australia)

(Quantity discounts available)

Product Information
Quantity Discounts
Stock Level0

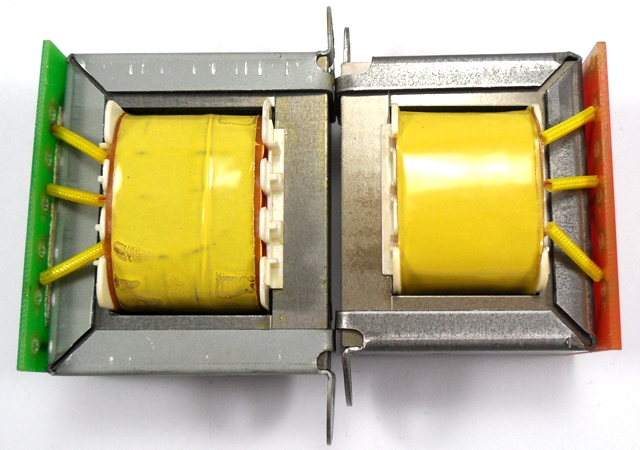

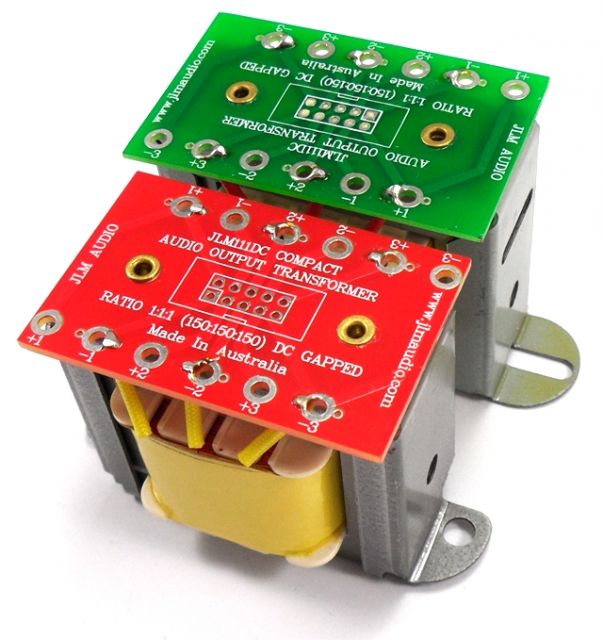

JLM111DCCOMPACT Output transformer. Can be used for Neve LO1166 or API 2503 type DIY projects. The transformer is DC gapped and has 3 identical 150ohm windings that are trifilar wound. So can use as 1:1:1 or 1:2 or 2:1 applications. It is physically slightly smaller size than the LO1166 and standard JLM111DC. The top terminal plate is narrower so it will fit on its side in 1 unit high racks and 500/51X modules which have a 36mm internal height.

Original LO1166 and JLM111DC are built on standard 15VA frame and NEW JLM111DC COMPACT is build on 12VA frame.


  • For 1:1 use any winding for primary and any other winding for secondary.
  • For 1:2 you could use winding 1 for primary and wire +2 to -3 and take  +3 & -2 as the secondary.
