1290 Build
The 1290micro or macro PCB has no variations on it so can be built from the PCB overlay in the general rule of lowest height part to the tallest.
The Full 1290 build PDF overlay below has most of the info you will need to build and connect all the PCBs together. Please have a good read of it before you start. But feel free to post any questions on this thread if you need help or more into.
Full 1290 build PDF overlay Ver2 here Latest version
Full 1290 build PDF overlay here Older version
1290 PCB Schematic here
1. Build TREX2 kit with 25turn 5k trim pot option if using our 48v SMPS power supply (24v zener NOT used) and fit both to back panel with insulation kits provided.
2. Check with ohmmeter that metal tab on the Tip122 transistors are not shorting to the metal back panel.
3. Wire power wiring from DC connector to fuse and power switch to TREX PCBs.
4. Turn on and adjust both TREX trim pots for 24v output before connecting them to the 1290 PCB.
5. Build and wire all other PCBs together for one channel at a time.
6. When load of 1290 is on the TREX the 24v trim may need to be fine adjusted to exactly 24v again.

JLM BAX83NV & BAX83AM PCBs are both 1.6" (32.7mm) wide x 1" (25.4mm) high. Modules come fully assembled and tested. With the BAX83AM module trim pot preset for Neve LO1166 & JLM111DC output transformers.

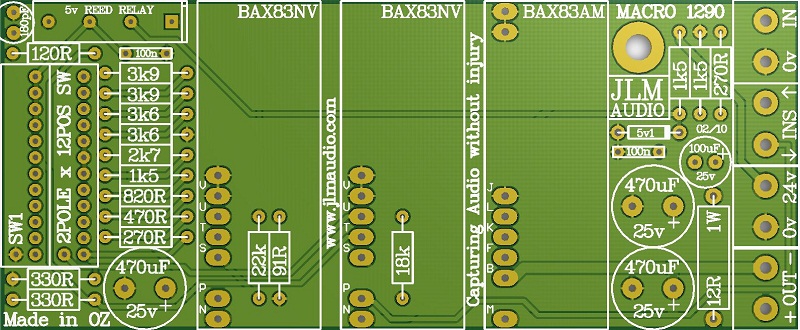

PCB Overlay of new MACRO 1290 PCB.

Some photo's of the new MACRO 1290 PCB to help.

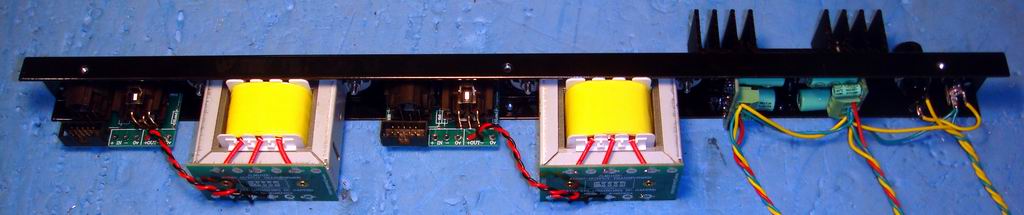

Back panel layout and wiring. (Note heatsink is no longer used with TREX2 or 2 x older TREX.)

Notes and Errata
1. TREX2 replaces 2 x TREX kit (simple zener regulator kit).
2. Micro 1290 PCB has been replaced with New Macro 1290 PCB which uses our new smaller 2 x 12 position switch and a better layout. Also eliminates the 1N914 diode across the relay coil to save confusion be it and the 5v1 zener. Adds 0.1uF across relay coil instead.
3. Heatsink eliminated from kit. Back panel is enough heatsinking for the TREX2 or 2 x TREX kit.
4. Follow overlay on XLRIO PCB for 10 pin header positioning. Locate opening on header maybe in or out depending on version of the PCB.
FAQ
Q. Power switch kit is missing the 1N4007?
A. 1N4007 is not used when switching DC so is not supplied.
Q. Do I need to add the resistors shown on the XLRIO PCB?
A. No. They are not used or supplied in XLRIO kit.
