JLM Mastering Console

   Click on image above for larger picture






Home
Whats New
Email



    JLM Mastering Console for Charles Turkmen in Turkey with Input , Output , Offset , Matrix to  Vert/Lat , Stereo Wide & Left , Right. Rematrix with spreader for Left , Right , Vert / Lat & Stereowide. Eight Channel stereo passive mixer. 14 point monitoring with 59 x 1dB step Master Level Encoder with LED readout. Monitor Swap , L & R phase reverse , L & R cut , Mute , Dim. Three Speaker outs. Also has talkback and studio out with level controls. All controls are switched in half dB steps.



  Picture of Prototype New JLM Active Monitor. Time Aligned 3 x 140w RMS amplifiers on board running from fully regulated Switch Mode power Supply and Maths based xover for no phase problems at the xover point and active bass extension. 8 of these have been fitted to the Judith Wright Building (New Institute of Modern Art) in Brunswick St Fortitude Valley, Brisbane. 2 x 6.5" Peerless Phase Plug drivers in 20mm thick PE Pipe tubes with Focal T90TDX tweeter.


JLM Monitors

Custom 3 Way Active Monitors for Airlock Studio


Ian Haug from Powderfinger has just Fitted a pair of these Large JLM 3 way active monitors to his Airlock Studio. Monitor has our time aligned Focal T90 tweeter and dual Peerless 6.5" Phase plug centre array of our normal monitors but with dual 12" 44mm travel woofer with active extension to -3dB at 22Hz.

Monitors size is 520mm high x 880mm wide x 300mm deep.

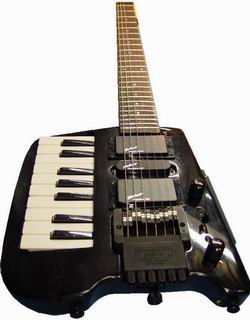

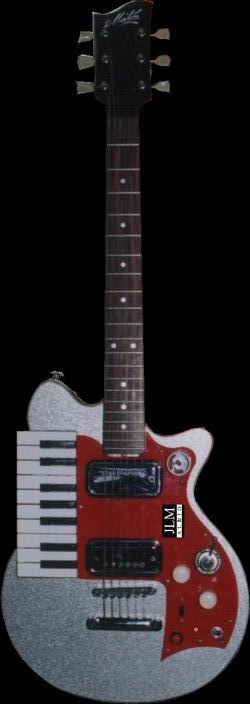

  Two Guitars that I built for Quan from Regurgitator  with built in Keyboards that sends Midi to Protools to play Virus Synth and Samples Live. The original Guitar is a Maton Mastersound and the New Guitar is a Steinberger Spirit. Simon Faux from Madonnas Music did some mayor Body Modifications to make the Keyboard flush with the front panels and widen the body on the Steinberger. Guitars have 7 pin XLR on bottom edge and active preamp on board for guitar. Simon repotted the pickups on the Maton to stop them squealing back at low levels. The New Guitar will make its debut on the Big Day Out shows!
