JLM 60watt AMP Kit

  • JLM 60w AMP
  • Overseas shipments do NOT pay Australian GST (Goods and Services tax).
  • NEW JLM 60Watt AMP PCB & full PCB parts kit  Parts List

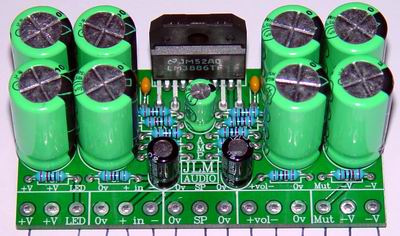

  • NEW JLM 60Watt AMP PCB

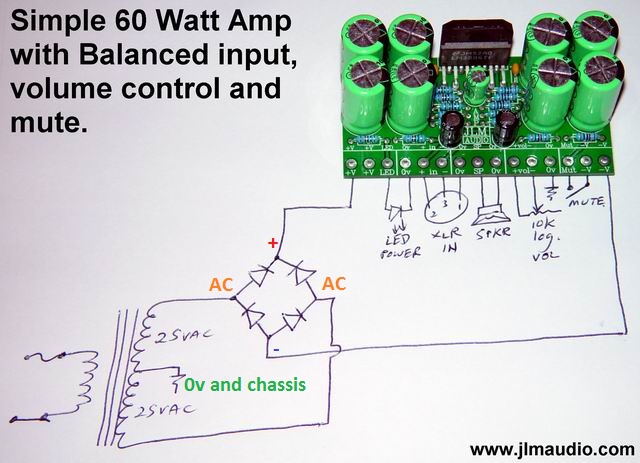

  • This kit provides a quick and easy way to build a high quality 60Watt with Balanced or unbalanced input and volume control and mute switch.
  • Two modules can be used to make a 120watt mono bridge amp as long as the power transformer voltage is dropped to 2 x 18vac.
  • If the mute switch is not needed a wire link must be left between mute terminal and -V.
  • If no volume control is needed just leave the terminals +/-vol with nothing wired to them.
  • With no volume control fitted the +/-vol pins can be used to do EQ like low end extension by adding a resistor and capacitor.
